Discover the gantry, jib, overhead, and workstation cranes that power vehicle manufacturing and keep assembly lines moving along efficiently.
Have you ever wondered how a car factory moves massive engine blocks or heavy vehicle frames from one station to another? The answer lies in some seriously powerful machinery. The automotive industry uses several types of cranes to handle the heavy lifting required for vehicle assembly, maintenance, and material transport. These systems power production lines, providing the muscle needed to build the cars we drive every day.
So what are these workhorses of the factory floor? Let’s take a closer look at the four main varieties of cranes that keep the automotive world moving.
Gantry Cranes
A gantry crane is easily recognizable by its structure, which consists of a bridge supported by two A-frame legs that run along a fixed rail system on the ground. Think of it as a massive, mobile archway. This design allows it to straddle large work areas and lift extremely heavy components, such as chassis, engines, large stamping dies, and raw materials.
You might see gantry cranes operating in outdoor storage yards or within large assembly halls where installing an overhead runway system isn’t practical.
Jib Cranes
Unlike the sprawling gantry cranes, jib cranes are much more compact. They typically consist of a horizontal beam, or “jib,” that is fixed to a wall or a floor-mounted pillar. A hoist and trolley move along this beam, allowing for lifting and movement within a circular or semi-circular area.
What makes them so useful in an automotive setting is their small footprint and targeted lifting capability. Jib cranes are perfect for individual workstations where workers need to lift and position transmission cases, engine parts, doors, heavy tools, and other such components.
They provide precise, localized lifting support, which improves both worker safety and workflow efficiency at a specific point on the assembly line.
Overhead Bridge Cranes

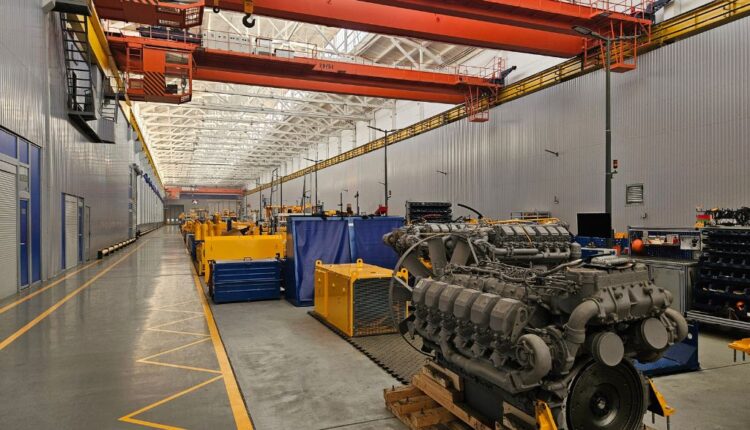

Overhead bridge cranes are perhaps the most common type found in automotive manufacturing plants. These cranes consist of a bridge that spans the width of the facility and moves along elevated runways. A hoist and trolley run along this bridge, giving it the ability to cover a large rectangular area.
Their primary role is to transport heavy parts and materials along the assembly line. This includes moving vehicle bodies from the paint shop to final assembly, positioning engines for installation, and transporting large rolls of steel. Many facilities use pendant or radio systems to control overhead cranes, giving operators flexibility and precision.
Workstation Cranes
Workstation cranes are a lighter, more modular version of overhead bridge cranes. They are designed to provide ergonomic lifting solutions over a smaller, specific work area. Instead of moving massive vehicle bodies, these cranes handle lighter loads, typically up to 2 tons.
They are ideal for repetitive tasks at individual assembly stations, helping workers lift and manipulate components such as instrument panels, seats, bumpers, and tires with minimal physical strain. By doing so, they boost productivity and reduce the risk of workplace injuries.
There you have it: the types of cranes the automotive industry uses to create a sophisticated system of material handling. These heavy-duty pieces of machinery make modern vehicle production possible.
